[Shake-dev] ShakeMap installation and user inquiries
Branden Christensen
branden.christensen at osop.com.pa
Sat Jul 14 22:51:10 UTC 2012
Bruce:
VICTORY!
This will likely go down in the annals of ShakeMap as a truly obscure bit
of knowledge but perhaps it will help someone down the road...
*The error in question:*
cp /opt/shakemap/dem//tmp.topo2grd.21322.grd
/opt/shakemap/dem//tmp.topo2grd.21322.grd.1
cp: cannot stat `/opt/shakemap/dem//tmp.topo2grd.21322.grd': No such file
or directory
*Origin:*
The error originates from within topo2grd at the dem2grd sub routine
(dem2grd is a GMT tool):
*The Problem:*
The GMT command dem2grid tries to write the tmp.topo2grd.21322.grd file to
a path that does not exist.
*The Solution:*
I do not know where to find the dem2grid file. It is probably a gmt binary
anyway. Fortunately, the SRTM30 folder I downloaded from
ftp://ftpext.usgs.gov/pub/cr/co/golden/lin/ShakeMap%20Portable/SRTM30.tar.gzcame
with a perl script called
dem2grid.pl.
The Solution then,
nano /opt/shakemap/bin/topo2grd
Change from: my $results = dem2grd($bounds,$tmp,$res);
To: my $results = command ("/opt/shakemap/dem/dem2grd.pl $bounds $tmp
$res");
nano /opt/shakemap/dem/dem2grd.pl
Make the following changes:
my $home = "/opt/shakemap/dem";
my $gmt = "/usr/lib/gmt/bin/";
my $file = "$lon$lat.grd"; (was my $file = "DATA/$lon$lat.grd")
And done.

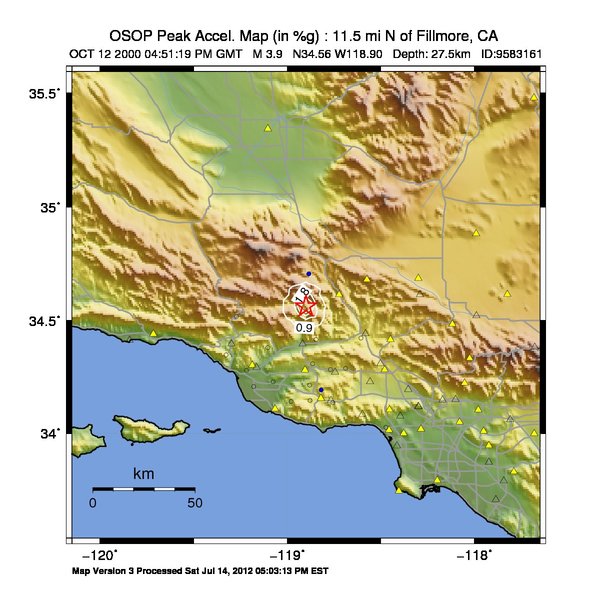

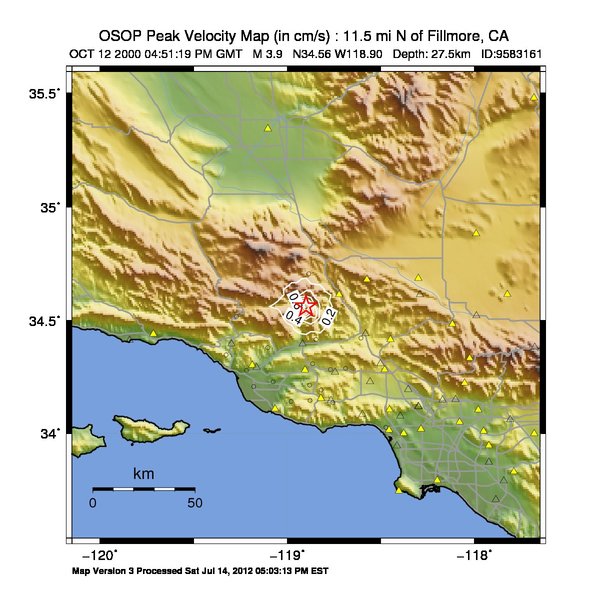

Thanks again for the help Bruce. To prove ShakeMap can work on Ubuntu,
please see the attached images.
Best,
*Branden C. Christensen*
Director, OSOP
*branden.christensen at osop.com.pa*
www.osop.com.pa
Volcan, Panama
On Sat, Jul 14, 2012 at 4:01 PM, Bruce Worden <cbworden at gmail.com> wrote:
> Hi Branden,
>
> I set my system to use the same grid spacing and map area that you're
> using, but I can't reproduce the error. I've tried to trace through to
> where things could go wrong, but there are several branches that could
> generate the same error messages.
>
> As I see it, there are three possible problems: 1) It's a GMT issue -- I
> seem to recall problems with 4.5.1, but I don't remember what they were; 2)
> There's a issue with one or more perl modules -- I consider this fairly
> unlikely, but possible; 3) We're running into the Ubuntu issues -- I don't
> recall this exact problem, usually it's a little later in grind when it
> tries to run sm_nearneighbor, but I don't know if anyone has tried Ubuntu
> with the DEM, so this could be a problem.
>
> I see three options: 1) Give up and use the virtual machine -- you'll be
> up and running in five minutes; 2) Upgrade your GMT to 4.5.5 or 4.5.7 and
> see if that fixes the problem; 3) Debug topo2grd and see if you can find
> where it's going off track. You'll notice that the verbose option gives you
> the full command:
>
> /opt/shakemap/bin/../bin/topo2grd 9583161
> -120.150000/-117.650000/33.533000/35.593000 0.025/0.025 regime=active
>
> You can run this from the command line. You can either add print
> statements until you identify the problem, or there's a perl visual
> debugger called ptkdb that you can install. The problem appears as if it
> starts in the subroutine called "dem2grd" or one of those below it.
>
> Sorry, I wish I could be more help. Let me know what progress you make.
>
> Bruce
>
>
> On Jul 13, 2012, at 3:12 PM, Branden Christensen wrote:
>
> *First, $VERBOSE=0;*
> *
> *
> *osop at sandbox1:/opt/shakemap/bin$ ./grind -event 9583161 -xml -qtm
> -verbose*
> Map bound: -120.150000/-117.650000/33.533000/35.593000
> cp: cannot stat `/opt/shakemap/dem//tmp.topo2grd.24664.grd': No such file
> or directory
> grdsample: Could not find file
> [/opt/shakemap/dem//tmp.topo2grd.24664.grd.1]
> Could not find /opt/shakemap/dem//tmp.topo2grd.24664.grd, aborting.
> grind: Error: Error in topo/sitecorr map creation, exiting.
>
> *SECOND, $VERBOSE=1;*
> *
> *
> *osop at sandbox1:/opt/shakemap/bin$ ./grind -event 9583161 -xml -qtm
> -verbose*
> Map bound: -120.150000/-117.650000/33.533000/35.593000
> cp: cannot stat `/opt/shakemap/dem//tmp.topo2grd.24744.grd': No such file
> or directory
> grdsample: Could not find file
> [/opt/shakemap/dem//tmp.topo2grd.24744.grd.1]
> /opt/shakemap/bin/../bin/topo2grd 9583161
> -120.150000/-117.650000/33.533000/35.593000 0.025/0.025 regime=active
> Using /opt/shakemap/dem/. Final resolution fixed at 0.025.
> Done with pasting.
> FINAL BOUNDS: -R///
> cp /opt/shakemap/dem//tmp.topo2grd.24744.grd
> /opt/shakemap/dem//tmp.topo2grd.24744.grd.1
> /usr/lib/gmt/bin/grdsample /opt/shakemap/dem//tmp.topo2grd.24744.grd.1
> -G/opt/shakemap/dem//tmp.topo2grd.24744.grd -I0.025
> FINAL BOUNDS: -R///
> Could not find /opt/shakemap/dem//tmp.topo2grd.24744.grd, aborting.
> grind: Error: Error in topo/sitecorr map creation, exiting.
>
> *Branden C. Christensen*
> Director, OSOP
> *branden.christensen at osop.com.pa*
> www.osop.com.pa
> Volcan, Panama
>
>
>
>
>
> On Fri, Jul 13, 2012 at 10:04 PM, Bruce Worden <cbworden at gmail.com> wrote:
>
>> Okay. Edit the program <shake>/bin/topo2grd and set $VERBOSE = 1, then
>> try to run grind again and let us look at the output.
>>
>> Bruce
>>
>> On Jul 13, 2012, at 2:05 PM, Branden Christensen wrote:
>>
>> Bruce:
>>
>>
>> I am running it from user "osop" and the permissions look good:
>>
>> osop at sandbox1:/opt/shakemap/dem$ ls -l
>> total 3037932
>> drwxr-xr-x 4 osop osop 4096 Jun 7 11:45 SRTM30
>> -rw-r-xr-x 1 osop osop 38252 Jul 10 08:52 Utah_srtm.jpg
>> -rwxr-xr-x 1 osop osop 4293 Jul 10 08:52 dem2grd.pl
>> -rwxr-xr-x 1 osop osop 3653 Jul 10 08:52 dem2grd.pl.orig
>> -rw-r-xr-x 1 osop osop 115201364 Jul 10 08:50 e020n40.grd
>> -rw-r-xr-x 1 osop osop 115201364 Jul 10 08:50 e020n90.grd
>> -rw-r-xr-x 1 osop osop 115201364 Jul 10 08:50 e020s10.grd
>> -rw-r-xr-x 1 osop osop 115201364 Jul 10 08:50 e060n40.grd
>> ...
>>
>> and
>>
>> osop at sandbox1:/opt/shakemap$ ls -l
>> total 108
>> ...
>> drwxr-xr-x 3 osop osop 4096 Jul 10 08:52 dem
>> ...
>>
>> *Branden C. Christensen*
>> Director, OSOP
>> *branden.christensen at osop.com.pa*
>> www.osop.com.pa
>> Volcan, Panama
>>
>>
>>
>>
>>
>> On Fri, Jul 13, 2012 at 8:57 PM, Bruce Worden <cbworden at gmail.com> wrote:
>>
>>> Hmm, that's strange. Does the ShakeMap user have permission to write
>>> files in /opt/shakemap/dem?
>>>
>>> Bruce
>>>
>>> On Jul 13, 2012, at 11:40 AM, Branden Christensen wrote:
>>>
>>> Bruce:
>>>
>>>
>>> I changed the path in /opt/shakemap/install/macros to:
>>>
>>> DEMDIR = /opt/shakemap/dem/SRTM30
>>>
>>> The contents of my are exactly the same as yours:
>>>
>>> osop at sandbox1:/opt/shakemap$ ls /opt/shakemap/dem/SRTM30
>>> DATA Utah_srtm.jpg dem2grd.pl.orig foo.jpg grab_srtm30.pl topo.cpt
>>> SRTM30 dem2grd.pl foo.grd foo.ps map.pl
>>> osop at sandbox1:/opt/shakemap$ ls /opt/shakemap/dem/SRTM30/DATA
>>> e020n40.grd e060s10.grd e140n90.grd w060n40.grd w100s10.grd
>>> w180n90.grd
>>> e020n90.grd e100n40.grd e140s10.grd w060n90.grd w140n40.grd
>>> w180s10.grd
>>> e020s10.grd e100n90.grd w020n40.grd w060s10.grd w140n90.grd
>>> e060n40.grd e100s10.grd w020n90.grd w100n40.grd w140s10.grd
>>> e060n90.grd e140n40.grd w020s10.grd w100n90.grd w180n40.grd
>>>
>>> I then did a "sudo make veryclean" and "sudo make all" just in case it
>>> mattered.
>>>
>>> The output is still:
>>>
>>> *osop at sandbox1:/opt/shakemap/bin$ ./grind -event 9583161 -xml -qtm
>>> -verbose*
>>> Map bound: -120.150000/-117.650000/33.533000/35.593000
>>> cp: cannot stat `/opt/shakemap/dem//tmp.topo2grd.28555.grd': No such
>>> file or directory
>>> grdsample: Could not find file
>>> [/opt/shakemap/dem//tmp.topo2grd.28555.grd.1]
>>> Could not find /opt/shakemap/dem//tmp.topo2grd.28555.grd, aborting.
>>> grind: Error: Error in topo/sitecorr map creation, exiting.
>>>
>>>
>>> B
>>>
>>> *Branden C. Christensen*
>>> Director, OSOP
>>> *branden.christensen at osop.com.pa*
>>> www.osop.com.pa
>>> Volcan, Panama
>>>
>>>
>>>
>>>
>>>
>>> On Fri, Jul 13, 2012 at 6:16 PM, Bruce Worden <cbworden at gmail.com>wrote:
>>>
>>>> Hi Branden,
>>>>
>>>> Congratulations -- it looks like you're almost there.
>>>>
>>>> I believe the error messages are related. When you run mapping with
>>>> -gsm, it expects to find a topo file left behind by grind. But you were
>>>> running without -qtm, so the topo file never got made. When you run grind
>>>> with -qtm, it's not finding the DEM for some reason.
>>>>
>>>> Here is how my system is set up: In <shake>/include/macros, I have the
>>>> following line:
>>>>
>>>> DEMDIR = /Users/bruceworden/Unix/ShakeMap/DATA/SRTM30
>>>>
>>>> In that directory is another directory called DATA
>>>> (i.e., /Users/bruceworden/Unix/ShakeMap/DATA/SRTM30/DATA) that contains the
>>>> following files:
>>>>
>>>> [giles:DATA] <281> ls
>>>> e020n40.grd e060s10.grd e140n90.grd w060n40.grd w100s10.grd
>>>> w180n90.grd
>>>> e020n90.grd e100n40.grd e140s10.grd w060n90.grd w140n40.grd
>>>> w180s10.grd
>>>> e020s10.grd e100n90.grd w020n40.grd w060s10.grd w140n90.grd
>>>> e060n40.grd e100s10.grd w020n90.grd w100n40.grd w140s10.grd
>>>> e060n90.grd e140n40.grd w020s10.grd w100n90.grd w180n40.grd
>>>>
>>>> See if you have an analogous setup on your machine. Note that the DEM
>>>> files are GMT grd files. If you have the raw DEM files, you'll need to use
>>>> the program dem2grd.pl (which should be included with the directory
>>>> you got from Kuo-Wan's FTP site) to convert them.
>>>>
>>>> Bruce
>>>>
>>>>
>>>> On Jul 13, 2012, at 9:43 AM, Branden Christensen wrote:
>>>>
>>>> Bruce et al.:
>>>>
>>>>
>>>> Great news. I have what looks like an operational ShakeMap installed on
>>>> Ubuntu 10.04.
>>>>
>>>> It turns out the error I reported in my last email:
>>>>
>>>> pscoast: full resolution shoreline data base not installed
>>>>
>>>> was due to a version problem. I had coastline files version 2.0.2 and
>>>> v2.0.2 files are not backwards compatible with GMT v4.5.1-1. I needed to
>>>> use version 2.0.1. If anyone runs into this issue in the future here are
>>>> the resources that led me to the solution:
>>>>
>>>> -
>>>> https://groups.google.com/forum/?fromgroups#!topic/linux.debian.bugs.dist/Av7HBia3sbc
>>>> - ftp://ftp.iris.washington.edu/pub/gmt/
>>>>
>>>>
>>>> What follows is the output I am now getting for ShakeMap. A jpeg for
>>>> the test event is attached.
>>>>
>>>> I am concerned about the following error:
>>>>
>>>> Could not find /opt/shakemap/dem//tmp.topo2grd.27124.grd, aborting.
>>>>
>>>> Please see below for the details:
>>>>
>>>>
>>>> *WITHOUT -qtm flag for grind...*
>>>> *
>>>> *
>>>> *
>>>> *
>>>> *osop at sandbox1:/opt/shakemap/bin$ ./shake -event 9583161 -dryrun*
>>>> /opt/shakemap/bin/../bin/retrieve -event 9583161
>>>> /opt/shakemap/bin/../bin/grind -event 9583161 -xml
>>>> /opt/shakemap/bin/../bin/tag -event 9583161
>>>> /opt/shakemap/bin/../bin/mapping -event 9583161 -gsm -timestamp -itopo
>>>> /opt/shakemap/bin/../bin/genex -event 9583161 -zip -metadata -shape
>>>> shape
>>>> /opt/shakemap/bin/../bin/transfer -event 9583161 -www -push
>>>> /opt/shakemap/bin/../bin/setversion -event 9583161
>>>>
>>>>
>>>> *osop at sandbox1:/opt/shakemap/bin$ ./retrieve -event 9583161 -verbose*
>>>>
>>>>
>>>> *osop at sandbox1:/opt/shakemap/bin$ ./grind -event 9583161 -xml -verbose*
>>>> Map bound: -120.150000/-117.650000/33.533000/35.593000
>>>> Using GMICE::WGRW11 for PGM2MI function
>>>> Using GMICE::WGRW11 for Inverse PGM2MI function
>>>> Using GMPE::BA08 for GMPE
>>>> BA08: No source mechanism specified. Using default.
>>>> grind: Bias 0.43 0.47
>>>> grind: 16 amps flagged out this iteration
>>>> grind: Bias 0.43 0.51
>>>> grind: 1 amps flagged out this iteration
>>>> grind: Bias 0.43 0.51
>>>> grind: 0 amps flagged out this iteration
>>>> Using DefaultIPE for IPE
>>>> Using GMPE::BA08 for GMPE
>>>> BA08: No source mechanism specified. Using default.
>>>> Intensity Bias=0.57
>>>> 0 amps flagged out this iteration
>>>> Uncertainty computation skipped (no Intensity > 6.0)
>>>>
>>>>
>>>> *osop at sandbox1:/opt/shakemap/bin$ ./tag -event 9583161 -verbose*
>>>> tag: exiting without action
>>>>
>>>>
>>>> *osop at sandbox1:/opt/shakemap/bin$ ./mapping -event 9583161 -gsm
>>>> -timestamp -itopo -verbose*
>>>> Running: /opt/shakemap/bin/../bin/echo -117.650000 35.593000 |
>>>> /usr/lib/gmt/bin/mapproject
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51
>>>> Running: /opt/shakemap/bin/../bin/echo -117.650000 35.593000 |
>>>> /usr/lib/gmt/bin/mapproject
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM25.4
>>>> Running: /opt/shakemap/bin/../bin/echo -117.650000 35.593000 |
>>>> /usr/lib/gmt/bin/mapproject
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JQ0/16.51
>>>> Running: /usr/lib/gmt/bin/psbasemap -Bw -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51
>>>> -X2.54 -Y2.54 -K
>>>> Running: /usr/lib/gmt/bin/psbasemap -Bw -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51
>>>> -X2.54 -Y6.35 -K
>>>> Running: /usr/lib/gmt/bin/psxy
>>>> /opt/shakemap/bin/../lib/mapping/ca_roads.xy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -m
>>>> -W6/153/153/153 -O -K
>>>> Running: /usr/lib/gmt/bin/pscoast -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51
>>>> -N1/5 -N2/5 -Df -W5 -S120/160/220 -Ia/2/120/160/220 -O -K
>>>> Running: /opt/shakemap/bin/../bin/echo -118.900000 34.563000 |
>>>> /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51
>>>> -Sa0.762 -W6/255/0/0 -L -O -K
>>>> Running: /opt/shakemap/bin/../bin/echo "0 -1.143 9 0 1 5 Map Version 1
>>>> Processed Fri Jul 13, 2012 10:29:52 AM EST " | /usr/lib/gmt/bin/pstext
>>>> -JX16.4465450265/16.51 -R0/16.4465450265/0/16.51 -N -O -K
>>>> Running: /usr/lib/gmt/bin/psbasemap -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51
>>>> -Ba60mf30m/a30mf30mWSen -Lfx2.54/1.78/34.5630/50+l -O
>>>> mapping: Creating topography files.
>>>>
>>>> Could not find /opt/shakemap/dem//tmp.topo2grd.27124.grd, aborting.
>>>> mapping: Topography file created.
>>>>
>>>> mapping: WARNING: no topography data found; will continue without topo.
>>>> Sampling to a finer grid; old: 0.025000/0.025122 new: 30c/30c
>>>> Running: /usr/lib/gmt/bin/grdsample
>>>> /opt/shakemap/bin/../data/9583161/output/mi.grd
>>>> -G/opt/shakemap/bin/../data/9583161/mapping/tmp_mi.grd -I30c/30c
>>>> mapping: WARNING: can't find topo data: making mi without topography
>>>> Running: /usr/lib/gmt/bin/grdimage
>>>> /opt/shakemap/bin/../data/9583161/mapping/tmp_mi.grd -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000/10/3000
>>>> -JM16.51 -C/opt/shakemap/bin/../lib/mapping/Ii.cpt -O -K
>>>> mapping: WARNING: can't find topo data: making mi without topography
>>>> Running: /usr/lib/gmt/bin/grdimage
>>>> /opt/shakemap/bin/../data/9583161/mapping/tmp_mi.grd -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000/10/3000
>>>> -JM25.4 -C/opt/shakemap/bin/../lib/mapping/Ii_ntsc.cpt -O -K
>>>> Running: /usr/lib/gmt/bin/grdcontour
>>>> /opt/shakemap/bin/../data/9583161/output/pga.grd -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51
>>>> -C0.9 -W5/255/255/255 -Af12/255/255/255 -Q8 -m -L0.45/9999 -O -K
>>>> Running: /usr/lib/gmt/bin/grdcontour
>>>> /opt/shakemap/bin/../data/9583161/output/pgv.grd -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51
>>>> -C0.2 -W5/255/255/255 -Af12/255/255/255 -Q8 -m -L0.1/9999 -O -K
>>>> Running: /usr/lib/gmt/bin/grdimage
>>>> /opt/shakemap/bin/../data/9583161/output/urat_pga.grd -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51
>>>> -C/opt/shakemap/bin/../lib/mapping/sd.cpt -O -K
>>>> Running: /usr/lib/gmt/bin/psscale
>>>> -C/opt/shakemap/bin/../lib/mapping/sd.cpt.legend.no1
>>>> -D6.7i/2.75i/5.00i/0.2i -O -K
>>>> Running: /usr/lib/gmt/bin/psscale -Bp
>>>> -C/opt/shakemap/bin/../lib/mapping/sd.cpt.legend -D6.7i/2.75i/5.00i/0.2i -O
>>>> -K
>>>> Running: /usr/lib/gmt/bin/psscale
>>>> -C/opt/shakemap/bin/../lib/mapping/sd.cpt.legend.0 -D6.7i/0.1i/0.2i/0.2i -O
>>>> -K
>>>> Running: echo 17.145 12.446 12 0 1 5 F | /usr/lib/gmt/bin/pstext
>>>> -JX16.4465450265/16.51 -R0/16.4465450265/0/16.51 -N -O -K
>>>> Running: echo 17.145 1.524 12 0 1 5 A | /usr/lib/gmt/bin/pstext
>>>> -JX16.4465450265/16.51 -R0/16.4465450265/0/16.51 -N -O -K
>>>> Running: echo 17.145 8.636 12 0 1 5 D | /usr/lib/gmt/bin/pstext
>>>> -JX16.4465450265/16.51 -R0/16.4465450265/0/16.51 -N -O -K
>>>> Running: echo 17.145 4.318 12 0 1 5 C | /usr/lib/gmt/bin/pstext
>>>> -JX16.4465450265/16.51 -R0/16.4465450265/0/16.51 -N -O -K
>>>> Running: echo 17.145 2.845 12 0 1 5 B | /usr/lib/gmt/bin/pstext
>>>> -JX16.4465450265/16.51 -R0/16.4465450265/0/16.51 -N -O -K
>>>> Running: /usr/lib/gmt/bin/mapproject -JM16.51
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -W1 -L -O -K
>>>> Done plotting stations.Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/255/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/224/224 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/102/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/102/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/255/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/255/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/120/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/255/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/102/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G204/0/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/153/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/255/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/224/224 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/102/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/102/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/255/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/255/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/120/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/255/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/102/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G204/0/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/153/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/255/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/224/224 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/102/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/102/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/255/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/255/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/120/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/255/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G255/0/255 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G102/102/102 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G204/0/0 -O -K
>>>> Running: /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM16.51 -S
>>>> -G0/153/0 -O -K
>>>> Running: /opt/shakemap/bin/../bin/echo -118.900000 34.563000 |
>>>> /usr/lib/gmt/bin/mapproject -JM16.51
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000
>>>> mapping: WARNING: couldn't find topo and intensity data; will continue
>>>> without topo.
>>>> Making urat_pga plot
>>>> Printing grade - (-0.000)
>>>> Running: echo '0.508 0.635 12 0 1 5 GRADE: - (Mean sigma: -)' |
>>>> /usr/lib/gmt/bin/pstext -JX19.05/16.4465450265 -R0/19.05/0/16.4465450265
>>>> -C.05i -W255o4/0 -N -O -K
>>>> Running: echo '13.53 0.508 12 0 1 5 MI = 6.0' |
>>>> /usr/lib/gmt/bin/pstext -JX19.05/16.4465450265 -R0/19.05/0/16.4465450265 -N
>>>> -O -K
>>>> Making pgv plot
>>>> Making pga plot
>>>> Making mi plot
>>>> Done with mi plot
>>>> Making tvmap
>>>> Running: /usr/lib/gmt/bin/psbasemap -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM25.4
>>>> -Bwesn -X2.54 -Y2.54 -K
>>>> Running: /usr/lib/gmt/bin/psxy
>>>> /opt/shakemap/bin/../lib/mapping/ca_roads.xy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM25.4 -m
>>>> -W8/153/153/153 -O -K
>>>> Running: /usr/lib/gmt/bin/pscoast -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM25.4
>>>> -Na/10/102/102/102 -Df -W10/102/102/102 -S120/160/220 -O -K
>>>> Running: /opt/shakemap/bin/../bin/echo -118.900000 34.563000 |
>>>> /usr/lib/gmt/bin/psxy -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM25.4
>>>> -Sa0.762 -W6/255/0/0 -L -O -K
>>>> Running: /usr/lib/gmt/bin/psbasemap -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM25.4
>>>> -Bwesn -Lfx5.54/2.54/34.5630/50m+l -O
>>>> Running: /usr/lib/gmt/bin/psbasemap -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JM25.4
>>>> -Ba60mf30m/a30mf30mWSen -O
>>>> Done with tvmap
>>>> Running: /usr/lib/gmt/bin/grdimage
>>>> /opt/shakemap/bin/../data/9583161/mapping/tmp_mi.grd -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JQ0/16.51
>>>> -C/opt/shakemap/bin/../lib/mapping/Ii_ntsc.cpt -K
>>>> Running: /usr/lib/gmt/bin/pscoast -Df -P
>>>> -R-120.1500000000/-117.6500000000/33.5330000000/35.5930000000 -JQ0/16.51
>>>> -S0 -O
>>>>
>>>>
>>>> *osop at sandbox1:/opt/shakemap/bin$ ./genex -event 9583161 -zip
>>>> -metadata -shape shape -verbose*
>>>> Creating 'genex' directory
>>>> Creating shape files
>>>> genex: /opt/shakemap/bin/../bin/contour -g pga.grd -C 0.04 -f 0.02 -Z
>>>> 0.01 -T 4 -o shape_shape/pga >> /opt/shakemap/bin/../logs/shape.log 2>&1
>>>> genex: /opt/shakemap/bin/../bin/contour -g psa03.grd -C 0.04 -f 0.02 -Z
>>>> 0.01 -T 4 -o shape_shape/psa03 >> /opt/shakemap/bin/../logs/shape.log 2>&1
>>>> genex: /opt/shakemap/bin/../bin/contour -g psa10.grd -C 0.04 -f 0.02 -Z
>>>> 0.01 -T 4 -o shape_shape/psa10 >> /opt/shakemap/bin/../logs/shape.log 2>&1
>>>> genex: /opt/shakemap/bin/../bin/contour -g psa30.grd -C 0.04 -f 0.02 -Z
>>>> 0.01 -T 4 -o shape_shape/psa30 >> /opt/shakemap/bin/../logs/shape.log 2>&1
>>>> genex: /opt/shakemap/bin/../bin/contour -g pgv.grd -C 2.0 -f 1.0 -Z 1.0
>>>> -T 4 -o shape_shape/pgv >> /opt/shakemap/bin/../logs/shape.log 2>&1
>>>> genex: /opt/shakemap/bin/../bin/contour -g mi.grd -C 0.2 -f 0.1 -Z 1.0
>>>> -T 4 -o shape_shape/mi >> /opt/shakemap/bin/../logs/shape.log 2>&1
>>>> Done.
>>>> Fill data array
>>>> Done.
>>>> Updating the web database with the new event info
>>>> Creating 'genex/ftp/9583161' directory
>>>> Making JPEG's from PostScript files
>>>> genex: Running: PATH=$PATH:/usr/bin/; export PATH; /usr/bin/convert
>>>> -colorspace RGB -quality 85 -density 144x144 tvmap.ps tvmap.jpg;
>>>> /usr/bin/convert -resize 50% -crop 864x861+0+-69 +antialias tvmap.jpg
>>>> tvmap.jpg;
>>>>
>>>> genex: Running: PATH=$PATH:/usr/bin/; export PATH; /usr/bin/convert
>>>> -colorspace RGB -quality 85 -density 144x144 urat_pga.ps urat_pga.jpg;
>>>> /usr/bin/convert -resize 50% -crop +0+182 +antialias urat_pga.jpg
>>>> urat_pga.jpg;
>>>>
>>>> genex: Running: PATH=$PATH:/usr/bin/; export PATH; /usr/bin/convert
>>>> -colorspace RGB -quality 85 -density 144x144 pgv.ps pgv.jpg;
>>>> /usr/bin/convert -resize 50% -crop +0+182 +antialias pgv.jpg pgv.jpg;
>>>>
>>>> genex: Running: PATH=$PATH:/usr/bin/; export PATH; /usr/bin/convert
>>>> -colorspace RGB -quality 85 -density 144x144 intensity.psintensity.jpg; /usr/bin/convert -resize 50% -crop +0+74 +antialias
>>>> intensity.jpg intensity.jpg;/usr/bin/convert intensity.jpg -thumbnail
>>>> 100x100 ii_thumbnail.jpg
>>>>
>>>> genex: Running: PATH=$PATH:/usr/bin/; export PATH; /usr/bin/convert
>>>> -crop 468x386+72+334 -transparent black ii_overlay.ps ii_overlay.png
>>>>
>>>> genex: Running: PATH=$PATH:/usr/bin/; export PATH; /usr/bin/convert
>>>> -colorspace RGB -quality 85 -density 144x144 pga.ps pga.jpg;
>>>> /usr/bin/convert -resize 50% -crop +0+182 +antialias pga.jpg pga.jpg;
>>>>
>>>> genex: Running: PATH=$PATH:/usr/bin/; export PATH; /usr/bin/convert
>>>> -colorspace RGB -quality 85 -density 144x144 tvmap_bare.pstvmap_bare.jpg; /usr/bin/convert -resize 50% -crop 864x861+0+-69 +antialias
>>>> tvmap_bare.jpg tvmap_bare.jpg;
>>>>
>>>> Done.
>>>> Preparing info for clickmaps
>>>> Done.
>>>> Collecting files for the web site
>>>> Done.
>>>> Creating metadata.
>>>> Running: /usr/bin/mp -h metadata.html -x metadata.xml -t metadata.txt
>>>> metadata.txt
>>>> Usage:
>>>> mp [-a4] [-addhdr type] [-alias name] [-allhdrs] [-article] [-bottom #]
>>>> [-bsdprint] [-chars #] [-columns #] [-config name] [-content]
>>>> [-copies #]
>>>> [-digest] [-elm] [-flip] [-folder] [-forcepage] [-from] [-help]
>>>> [-landscape] [-left #] [-linelength #] [-modtime] [-name appname]
>>>> [-newpage] [-nobanners] [-noburstpage] [-number] [-onesided]
>>>> [-organiser
>>>> {filofax|franklin|proplan|timeman|tsintl|tspartner} ] [-pagelength
>>>> #]
>>>> [-portrait] [-postscript] [-printer] [-prologue name] [-remhdr type]
>>>> [-right #] [-subject text] [-tab #] [-text] [-tumble] [-twosided]
>>>> [-us]
>>>> [-version] [-words #] [-wrap] [filename ...]
>>>>
>>>> Done.
>>>> Creating KML/KMZ.
>>>> Done.
>>>> Finishing up shape files...
>>>> Done.
>>>> Cooking web pages
>>>> Build homepage
>>>> Build 'Most Recent Earthquake' table
>>>> Build 'Other Recent Earthquakes' list
>>>> events [] in list
>>>> Done.
>>>>
>>>>
>>>> *osop at sandbox1:/opt/shakemap/bin$ ./transfer -event 9583161 -www -push
>>>> -verbose*
>>>> transfer: ----- Starting Transfer at 07/13/2012 10:31:21 -----
>>>> transfer: ----- Transfer finished at 07/13/2012 10:31:21 -----
>>>>
>>>>
>>>> *osop at sandbox1:/opt/shakemap/bin$ ./setversion -event 9583161 -verbose*
>>>> setversion: Nothing to do, exiting.
>>>>
>>>>
>>>>
>>>> *WITH -qtm flag for grind...*
>>>>
>>>> *osop at sandbox1:/opt/shakemap/bin$ ./grind -event 9583161 -xml -qtm
>>>> -verbose*
>>>> Map bound: -120.150000/-117.650000/33.533000/35.593000
>>>> cp: cannot stat `/opt/shakemap/dem//tmp.topo2grd.29713.grd': No such
>>>> file or directory
>>>> grdsample: Could not find file
>>>> [/opt/shakemap/dem//tmp.topo2grd.29713.grd.1]
>>>> Could not find /opt/shakemap/dem//tmp.topo2grd.29713.grd, aborting.
>>>> grind: Error: Error in topo/sitecorr map creation, exiting.
>>>>
>>>>
>>>>
>>>> *Branden Christensen*
>>>> branden.christensen at osop.com.pa
>>>> www.osop.com.pa
>>>>
>>>> <intensity.jpg>
>>>>
>>>>
>>>>
>>>
>>>
>>
>>
>
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://geohazards.usgs.gov/pipermail/shake-dev/attachments/20120714/7ab00692/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pgv.jpg
Type: image/jpeg
Size: 80773 bytes
Desc: not available
URL: <http://geohazards.usgs.gov/pipermail/shake-dev/attachments/20120714/7ab00692/attachment-0003.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pga.jpg
Type: image/jpeg
Size: 80274 bytes
Desc: not available
URL: <http://geohazards.usgs.gov/pipermail/shake-dev/attachments/20120714/7ab00692/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: intensity.jpg
Type: image/jpeg
Size: 102638 bytes
Desc: not available
URL: <http://geohazards.usgs.gov/pipermail/shake-dev/attachments/20120714/7ab00692/attachment-0005.jpg>
More information about the Shake-dev
mailing list
