[Shake-dev] where to get shakemap DEM grid data??

Branden Christensen branden.christensen at osop.com.pa
Mon Dec 31 16:01:09 UTC 2012


吴叔坤:


OK, I have a solution:
https://www.dropbox.com/sh/euv6wq7hzbsyeas/V2T1X5jUzP

I apologize this took so long but I live on the flanks of a volcano at the
end of the world from where I connect to my servers via an radio-internet
connection.

Follow these steps:
1. Download
2. unpack to <shakemap_home>/dem
3. cd SRTM30/
4. cp * ../
5. cd DATA
6. cp * ../../
Now everything you need is at <shakemap_home>/dem.

Be sure to send the list any really nice ShakeMaps when you get the
software running! From your name and email address I see you are in China.
It would be really cool to receive from ShakeMaps from events in your

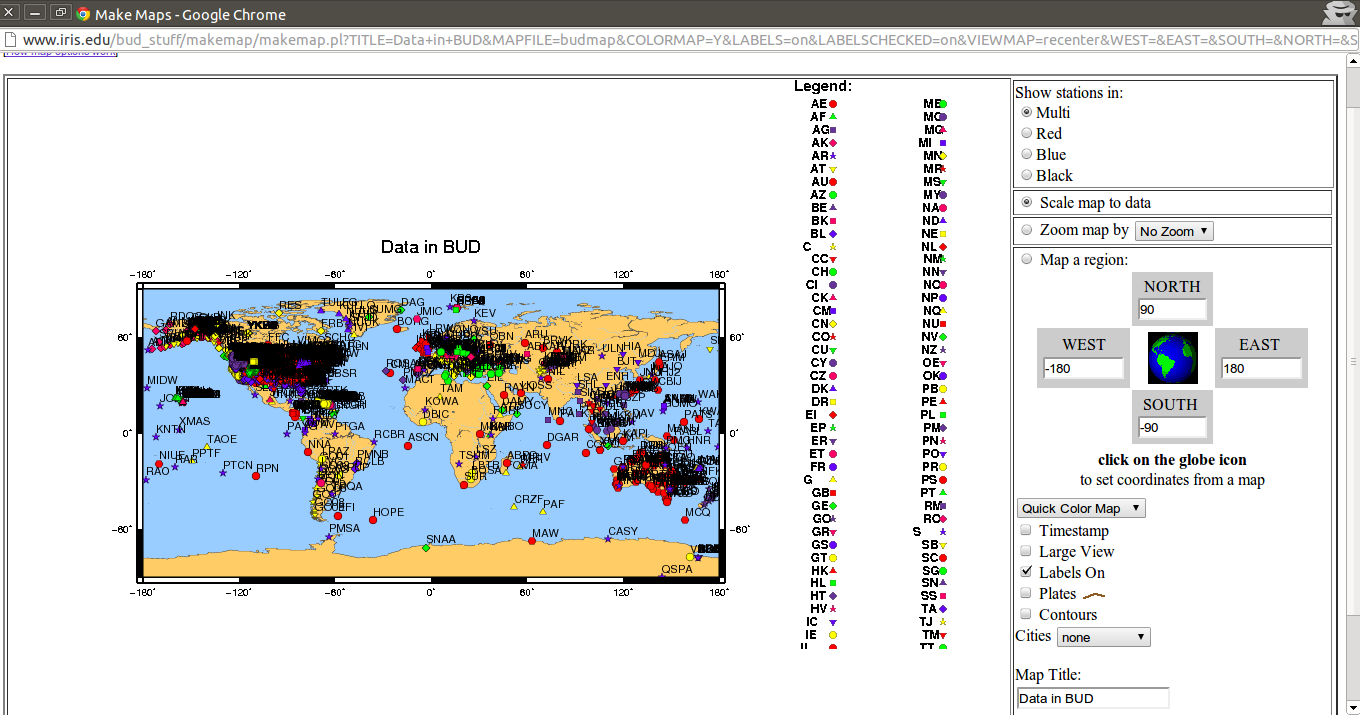

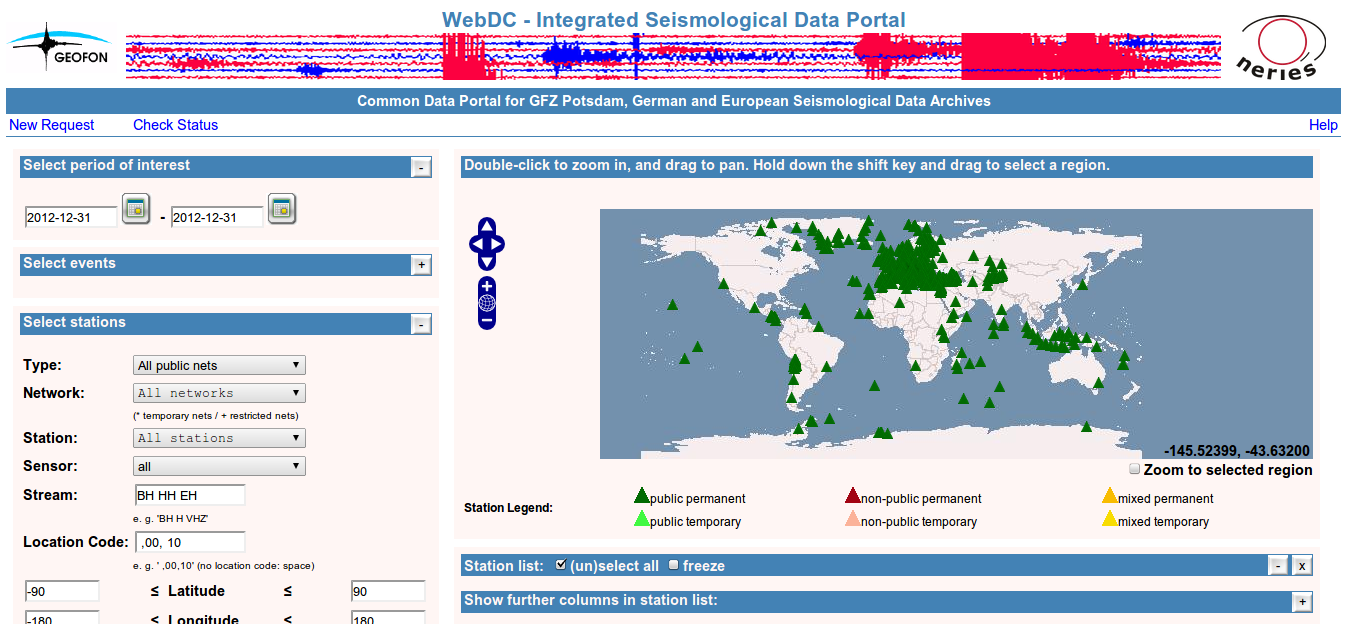

country. Maybe we can even exchange data in real-time? Attached are two
maps showing international data available via IRIS and Geofon. Notice the
big hole where China is!


Kind Regards,


*Branden C. Christensen*
Director, OSOP
*branden.christensen at osop.com.pa*
www.osop.com.pa
Volcan, Panama
Reverse the order: "People do not buy what you do. They buy why you do it."
- Simon Sinek, TED talk: 'How great leaders inspire action.'



On Mon, Dec 31, 2012 at 2:06 AM, Branden Christensen <
branden.christensen at osop.com.pa> wrote:

> 吴叔坤:
>
>
> Wow! 653M! Give me some more time. But I am working on a solution...
>
> B
>
> *Branden C. Christensen*
> Director, OSOP
> *branden.christensen at osop.com.pa*
> www.osop.com.pa
> Volcan, Panama
> Reverse the order: "People do not buy what you do. They buy why you do
> it." - Simon Sinek, TED talk: 'How great leaders inspire action.'
>
>
>
> On Mon, Dec 31, 2012 at 1:52 AM, 吴叔坤 <wsk at gddsn.org.cn> wrote:
>
>> BTW on that ftp site link only contained a Shakemap_fedora.zip file
>> 在 2012-12-31,上午10:33,吴叔坤 <wsk at gddsn.org.cn> 写道:
>>
>> but unfortunately it seems ftp site was off and i can not connected it
>> 在 2012-12-31,上午10:17,Branden Christensen <branden.christensen at osop.com.pa>
>> 写道:
>>
>> WSK:
>>
>>
>> Download the dems from:
>>
>>
>> ftp://ftpext.usgs.gov/pub/cr/co/golden/lin/ShakeMap%20Portable/SRTM30.tar.gz
>>
>> Unpack the dem's to <shake_home>/dem
>>
>> Configure "DEMDIR" in your macros (<shake_home>/include/macros) to point
>> to "<shake_home>/dem"
>>
>> Configure "$results" in <shake_home>/bin/topo2grd to "command ("
>> <shake_home>/dem/dem2grd.pl $bounds $tmp $res");
>>
>> NOTE: I think dem2grd.pl comes inside SRTM30.tar.gz.
>>
>> Then add:
>>
>> my $home = "<shake_home>/dem";
>> my $gmt = "<location_gmt>/bin/";
>> my $file = "$lon$lat.grd"; (was my $file = "DATA/$lon$lat.grd")
>>
>> before "$strict" in <shake_home>/dem/dem2grd.pl
>>
>>
>> That should be it. Make sure you have gmt installed.
>>
>> If you are not familiar with freebsd and are a Linux-Debian person, then
>> I recommend installing ShakeMap under Ubuntu.
>>
>>
>>
>>
>> Kind Regards from Panama,
>>
>> *Branden C. Christensen*
>> Director, OSOP
>> *branden.christensen at osop.com.pa*
>> www.osop.com.pa
>> Volcan, Panama
>> Reverse the order: "People do not buy what you do. They buy why you do
>> it." - Simon Sinek, TED talk: 'How great leaders inspire action.'
>>
>>
>>
>> On Mon, Dec 31, 2012 at 1:54 AM, wsk <wsk at gddsn.org.cn> wrote:
>>
>>> hi list
>>>
>>> I've successed build shakmap v3.5 on freebsd 9.1 with Mr Worden's user
>>> guide and with appreciated.
>>> and no i have a problem while i test it:
>>> so, where to get the DEM grid data and how to use it?
>>> BTW
>>> and i googled SRTM30 and found on
>>> http://dds.cr.usgs.gov/srtm/version2_1/SRTM30/
>>> but it's a zip file without dem2grid file and have no ideas how to use
>>> it.
>>>
>>> shakemap# /usr/local/shakemap/bin/shake -event 9583161
>>> 2012-01-08 07:15:14 : transfer: ----- Starting Transfer at 01/08/2012
>>> 07:15:14 -----
>>> 2012-01-08 07:15:14 : transfer: ----- Transfer finished at 01/08/2012
>>> 07:15:14 -----
>>> 2012-01-08 07:15:14 : grind: WARNING: You have specified an incorrect
>>> ampfactor_file in
>>> 2012-01-08 07:15:14 : grind: WARNING: grind.conf.
>>> 2012-01-08 07:15:14 : grind: WARNING: Continuing using default
>>> Borcherdt94.dat table.
>>> Quitting topo2grd. at /usr/local/shakemap/bin/../bin/topo2grd line 233.
>>> /usr/local/shakemap/bin/../bin/topo2grd 9583161
>>> -120.150000/-117.650000/33.813000/35.313000 0.025/0.025 regime=active
>>> Using . Final resolution fixed at 0.025.
>>> c
>>> DEM grid file: /DATA/w180n40.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w180s10.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w140n90.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w140n40.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w140s10.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w100n90.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w100n40.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w100s10.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w060n90.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w060n40.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w060s10.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w020n90.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w020n40.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/w020s10.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e020n90.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e020n40.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e020s10.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e060n90.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e060n40.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e060s10.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e100n90.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e100n40.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e100s10.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e140n90.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e140n40.grd NOT FOUND. Why?
>>> DEM grid file: /DATA/e140s10.grd NOT FOUND. Why?
>>> Error in topo2grd: Nothing extracted.
>>> Set $VERBOSE = 1 and examine the output.
>>> It is likely you have something misconfigured in your DEM data.
>>> grind: Error: Error in topo/sitecorr map creation, exiting.
>>> shake: Error in grind: 256
>>>
>>> _______________________________________________
>>> Shake-dev mailing list
>>> Shake-dev at geohazards.usgs.gov
>>> https://geohazards.usgs.gov/mailman/listinfo/shake-dev
>>>
>>
>>
>>
>>
>
