[Shake-dev] getting rid of ugly grid lines?
Renate Hartog
jrhartog at uw.edu
Tue Nov 22 00:39:58 UTC 2011
Hello Bruce,
Is there a mapping option that I can use to get rid of these ugly grid
lines on my pga and pgv plots?
I tried removing my .gmtdefaults4 file and rerunning, but no change. Just
updated to the latest version of everything and still there.
my map_axes : a60mf30m/a30mf30mWSen
After I run shakemap, a new .gmtdefaults4 file is created which has these
values:
GRID_CROSS_SIZE_PRIMARY = 0i
GRID_PEN_PRIMARY = 0.25p
GRID_CROSS_SIZE_SECONDARY = 0i
GRID_PEN_SECONDARY = 0.5p
I think I get these grids because the grid_cross_size is set to 0. However,
changing them in the .gmtdefaults4 file in SHAKE_HOME also makes no
difference.
GMT version 4.5.0
(btw, the grid is not plotted on intensity plots).
thanks, Renate
--
Renate Hartog
Research Scientist
Pacific Northwest Seismic Network
Department of Earth and Space Sciences
University of Washington
Box 351310
Seattle, WA 98195
Tel. +1-206-685-7079 (office)
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://geohazards.usgs.gov/pipermail/shake-dev/attachments/20111121/a0c08ad5/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

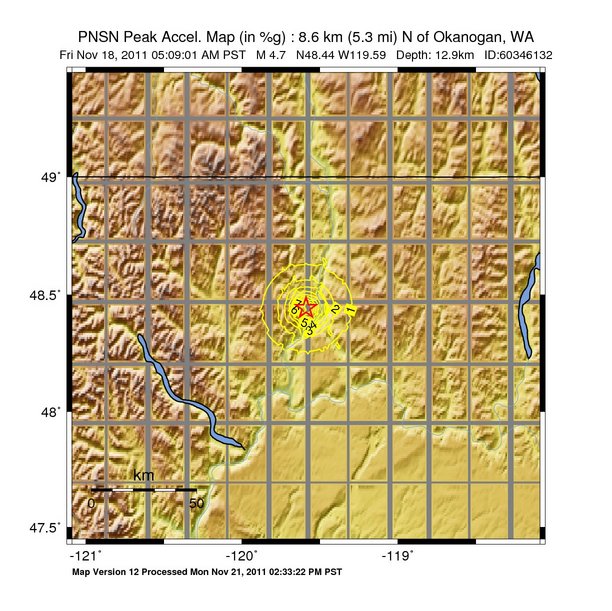

Name: pga.jpg
Type: image/jpeg
Size: 105120 bytes
Desc: not available
URL: <http://geohazards.usgs.gov/pipermail/shake-dev/attachments/20111121/a0c08ad5/attachment-0001.jpg>
